Mai 1st 2021 – additional
Juin 1st 2020 – added

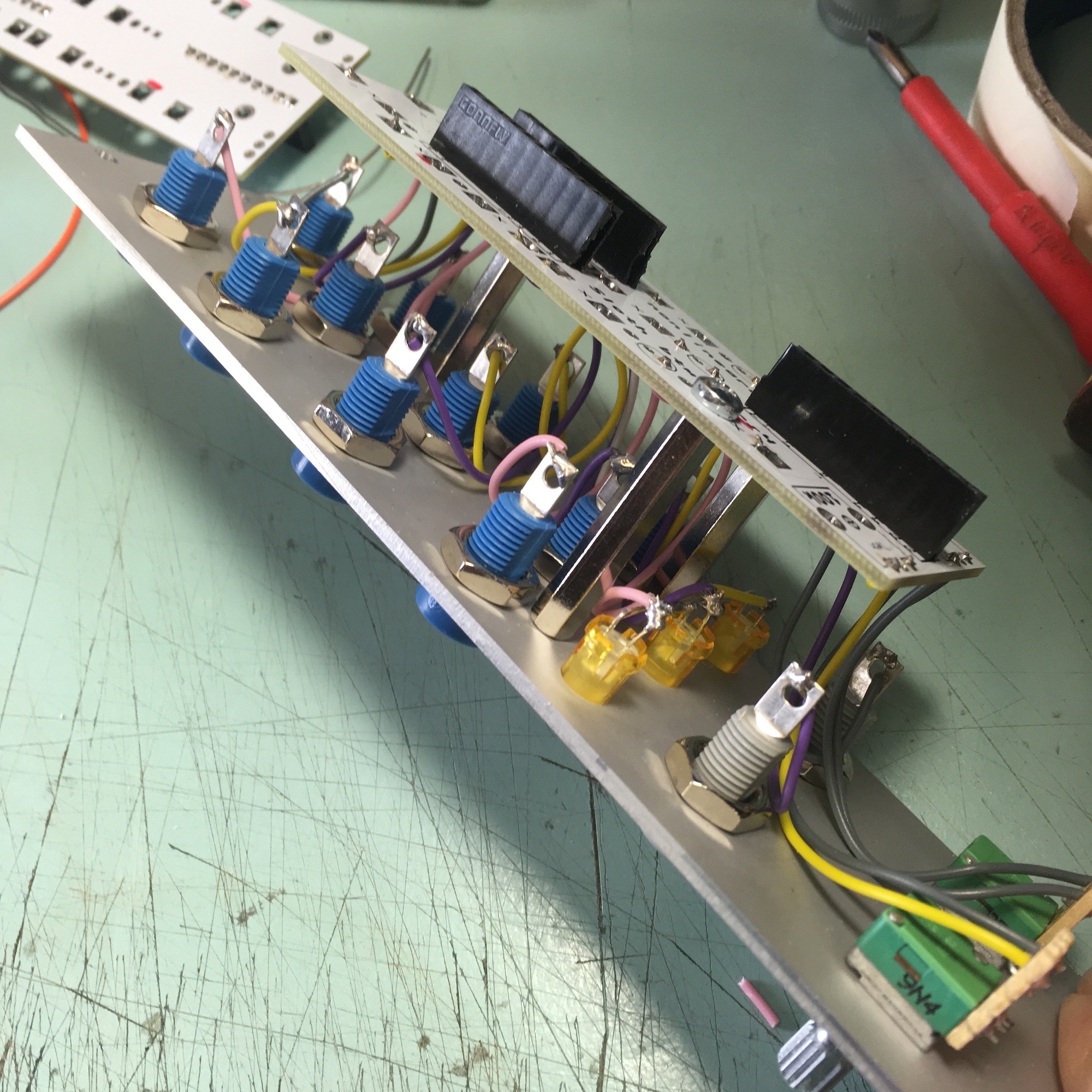

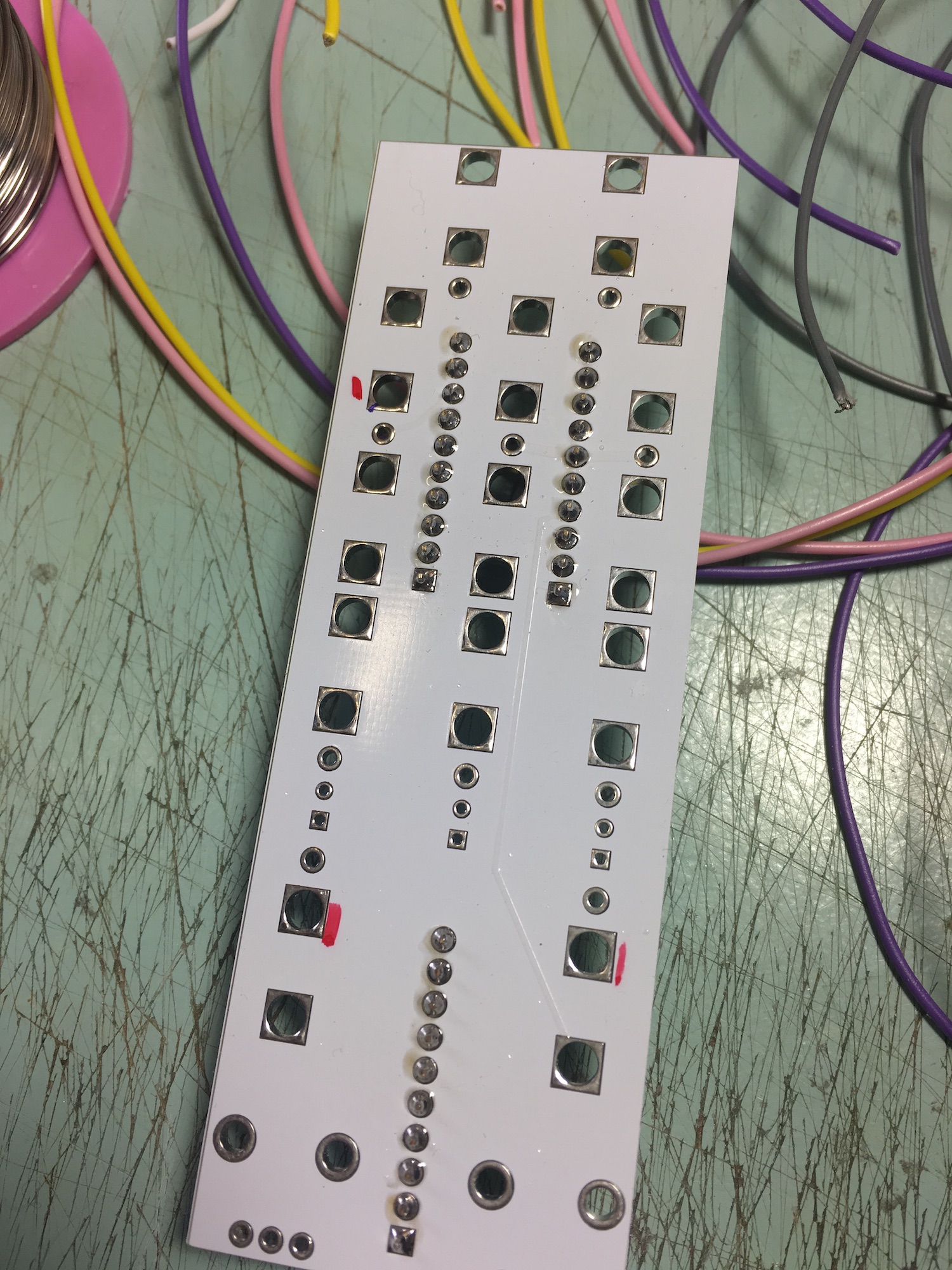

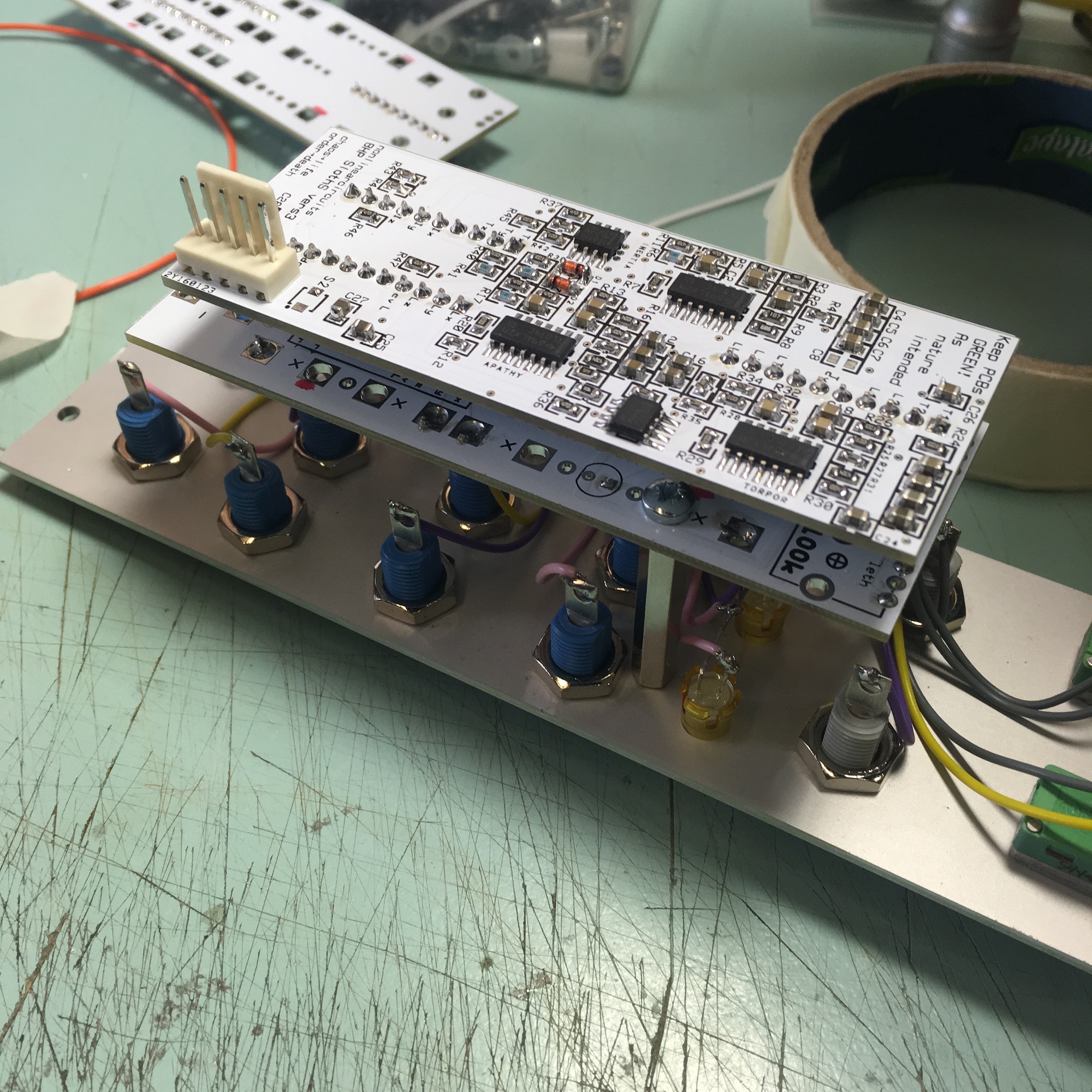

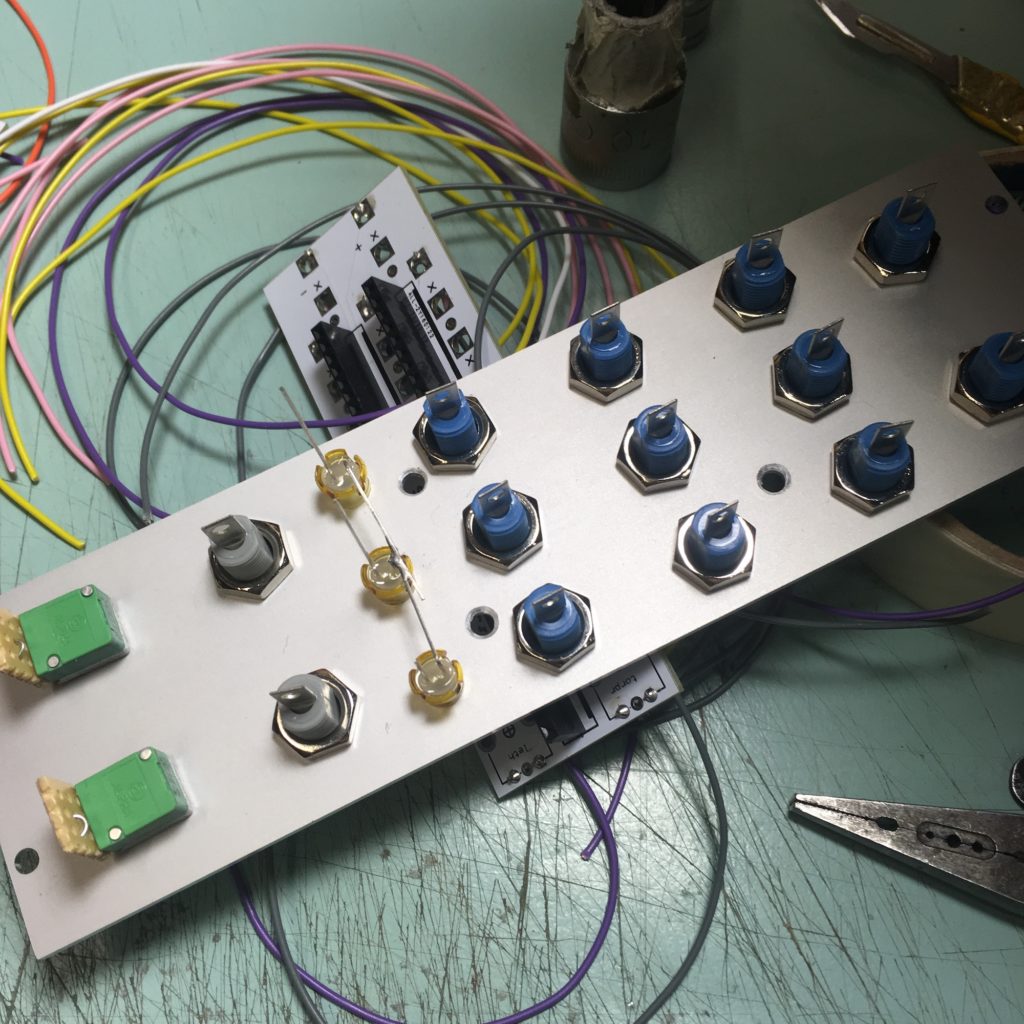

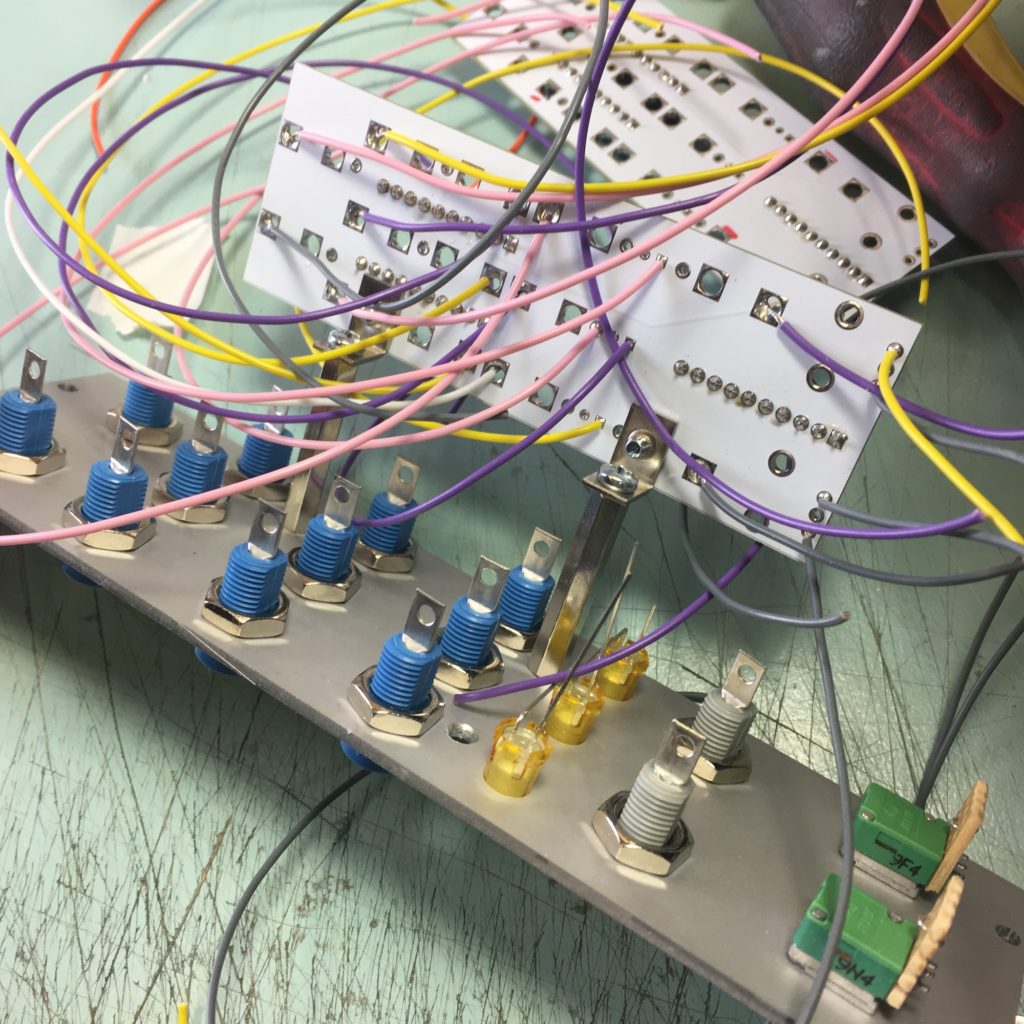

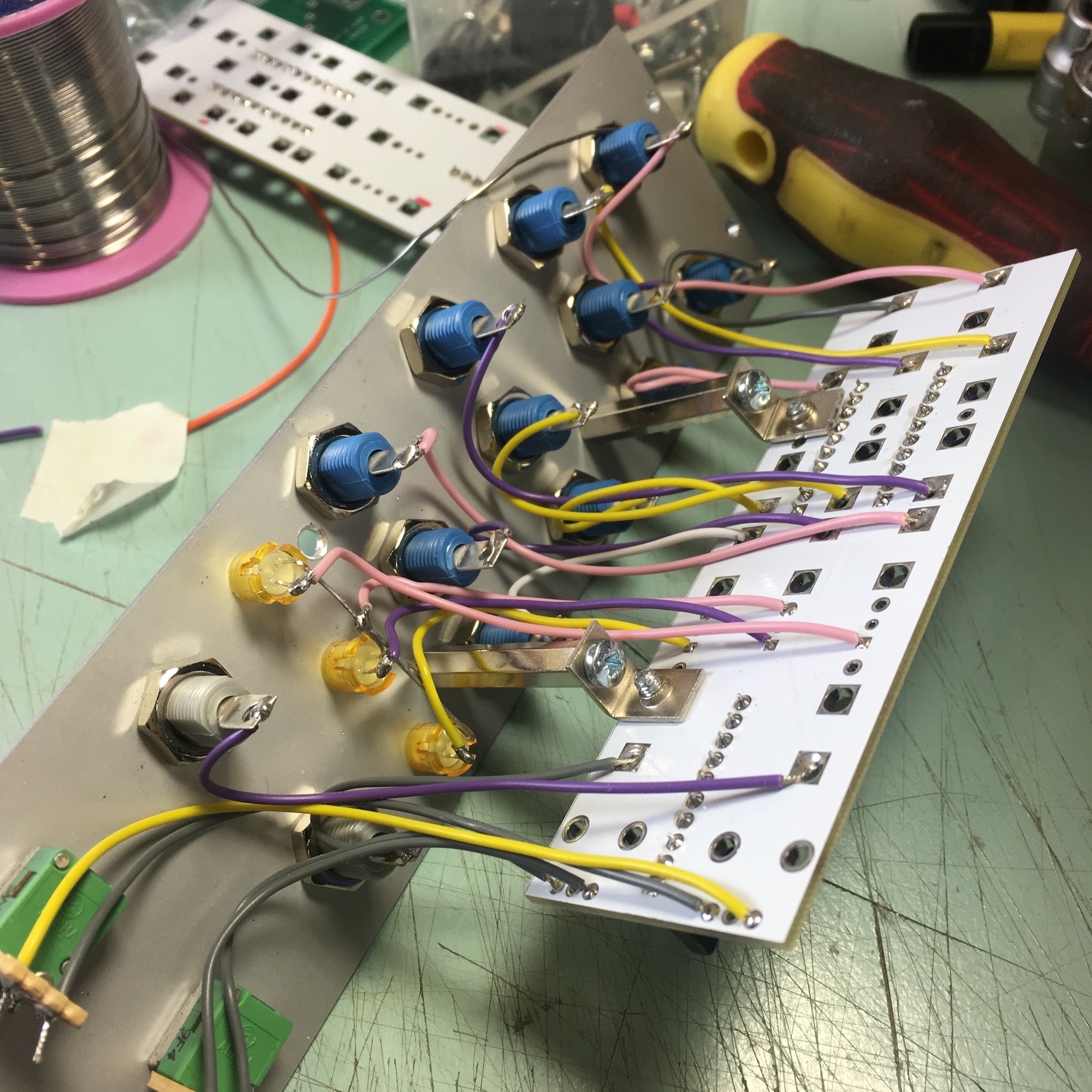

This panel uses some of the minijack holes on the panel PCB to mount the PCB sandwich to the panel on 3mm diameter standoffs, see pictures below for build tips – I have also built one or two using the CLee bracket to hold the PCB and it can even be a bit easier and neater, some panels must be wired as such as they don’t have panel holes for standoffs, it’s up to you to choose how you prefer, you may like to drill some holes as above – if so I would suggest tracing around the PCB on tracing paper and marking where the standoffs will go on the paper, that way you can ‘see through’ the PCB when you lay the tracing on top of the panel and see where it will fit.
